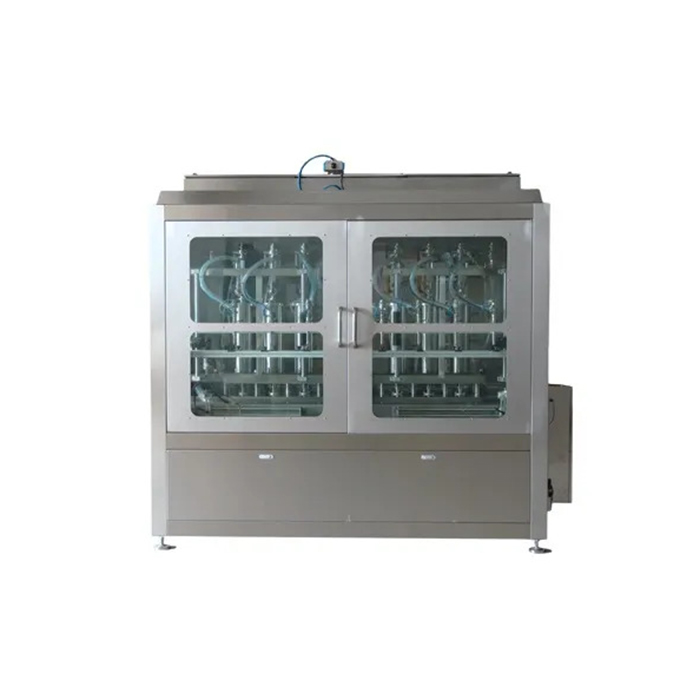

Automatic PET Bottle Filling Machine / Bottling Line / Project

mašina "tri u jednom" za PET bocu objedinjuje funkciju ispiranja, punjenja i zatvaranja zajedno. Zasnovana na naprednoj prekomorskoj tehnologiji i dizajnirana u skladu sa zahtevima za obradu vode za punjenje

Glavne karakteristike

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Iznos radne pozicije	Ispiranje 32, punjenje 32, zatvaranje 10
Proizvodni kapacitet	15000BPH (500ml)
Pritisak izvora zraka	0.7Mpa
Potrošnja vazduha	1,2m3 / min
Tlak vode za ispiranje	0.2-0.25Mpa
Kapacitet vode za ispiranje	2.5T / H
Glavna snaga motora	3.2kW
Ukupna snaga	4.8kw
Dimenzija	4250X2150X2200mm (D × Š × V)
težina	5200kg

Takođe nudimo i Postrojenje za automatsko flaširanje čiste vode

Sadrži 4 glavna dijela:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Glavni opis kompletnog retka:

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5. We provide the engineers for customer installation, training in customer's factory.

Modeli i lista brzina

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Pranje ruku	8	14	16	24	32
Ventili za punjenje	8	12	16	24	32
Hvatanje ruku	3	5	5	8	10
Pogodne boce od PET / stakla (150ml do 2000ml)
Kapacitet (brzina) Baza na 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Dobavljač robnih marki za električne komponente

Glavni sastav	Opis dobavljač
PLC	Mitsubishi (Japan), Siemens (Njemačka)
Ekran na dodir	Weinview (Tajvan)
Pretvarač frekvencije	Mitsubishi (Japan), Siemens (Njemačka)
Zračni prekidač	Schneider (Francuska)
Breaker	Siemens (Njemačka)
Kontaktor	Siemens (Njemačka)
Fotoelektrični prekidač	Omron (Japan)

Brzi detalji

Tip: Mašina za punjenje
Stanje: Novo
Primjena: pića, hemijska, medicinska
Vrsta ambalaže: Boce
Ambalaža: plastika
Automatski razred: Automatski
Voženi Tip: Električni
Napon: 380V / 220V
Snaga: 4.8KW
Mjesto porijekla: Šangaj, Kina (kopno)
Naziv robne marke: VKPAK
Dimenzija (D * Š * V): 4250X2150X2200mm
Težina: 5200KGS
Certifikacija: CE, ISO, SGS
Dostavljena usluga: Inženjeri dostupni za servisiranje strojeva u inozemstvu
Tvornica: LINSKI STROJI
Veličina boce: 150ml do 2000ml
Promjer vrata boce: 15-55mm
Materijal za boce: plastika / staklo
Brzina (osnovica na boci od 500ml): 15000B / h
Upravljački sistem: PLC ekran osetljiv na dodir (MITSUBISHI JAPAN)
Poklopac: Vijak / Pritisnite poklopac
Kap lift: Imati
Tečnost za punjenje: mineralna / čista voda
